    STEP 1: Download Bootloader

    The bootloader is what you use to upload your code through USB to your Axon. Download and install the .exe into the same folder that you have your compiled robot code.

    FBOOT v1.7 EXE (17kb)

    Optional: If you'd like to modify the bootloader, download it here:
    FBOOT17 Axon source code (63kb)
    latest beta bootloader software is available

    The latest FBOOT version and source code (not SoR tested) can be found on the fast tiny & mega UART bootloader project page. It comes with zero documentation, but I have instructions on how to use and adapt this bootloader for your own use on the $50 Robot Bootloader Tutorial.

    If you are using Linux or Mac OS X, you may try this bootloader.


    STEP 2: Go to Code Folder

    Now open up a command prompt by going to

    start->Run...

    and typing in 'cmd' and pushing ok:

    A new command prompt should open up. Using the command 'cd', go into the directory that has your code and FBOOT17.exe. In this example, my code is in the folder called ERP:

    Bootloader Command Window


    STEP 3: Run Bootloader

    TURN OFF YOUR AXON

    With your Axon II turned off and USB plugged in, type in this command:
    FBOOT17.EXE -b115200 -c1 -pfile.hex -vfile.hex

    115200 is your desired baud (9600, 38400, 115200, etc). The bootloader has an 'autobaud' feature, so it's likely to work under most baud settings. Try a lower baud rate such as 38400 if it doesn't work.

    c1 is your Axon II USB COM port (c1, c2, c3, etc) as shown in your Device Manager (see step 3). The bootloader only allows c1 to c4.

    'file' is the name of your program you want uploaded. The filename MUST be 8 characters or less or it will not work (a bug in the bootloading software).

    For example, if Axon.hex was your file, do this:
    -pAxon.hex -vAxon.hex

    (yes, you need to say it twice, with p for the first time and v for the second time)

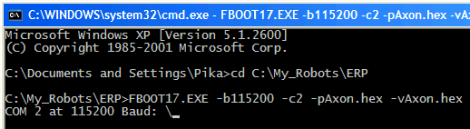

    Press enter, and now you will see a \ symbol spinning.

    Bootloader Command Window


    STEP 4: Turn On Axon

    Turn on your Axon, and it should now upload your .hex file.

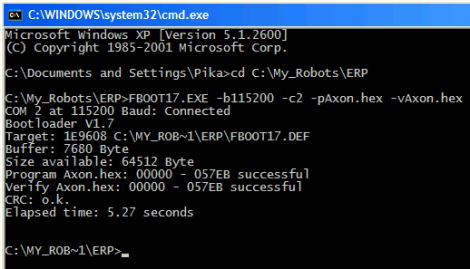

    This is what you should see upon a successful bootload:

    Bootload Completed

    Remember, the bootloader must always be activated BEFORE you turn on the Axon or it will not work.

    note: after typing in a command once into the command prompt, you do not need to type it again. Just push the up arrow key to cycle through previously typed commands.

    note: if it takes more than about ~8 seconds to load your code, please see the FAQ on how to speed up your bootloader.

    You can also set up a shortcut that stores your typed information. Check this forum thread for more info.

    It didn't work? Read the bootloader debugging checklist.


    STEP 5: Be Happy!

    Congrats, you just programmed your Axon II successfully!
