Author Topic: FEETECH FT-SCServo 15kg Smart Control Servo Controlled By Arduino  (Read 493 times)

0 Members and 1 Guest are viewing this topic.

Offline robotfansTopic starter

  • Jr. Member
  • **
  • Posts: 8
  • Helpful? 0

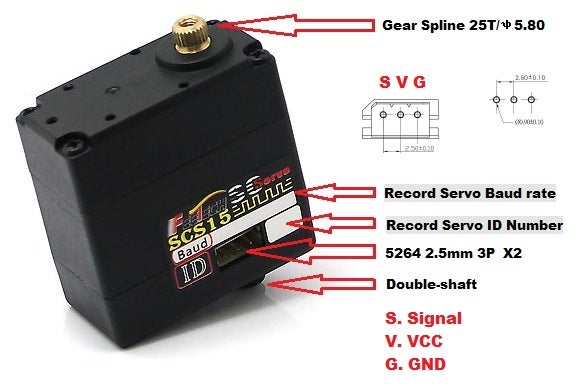

Feetech RC T-SCServo 15kg Smart Control Servo ( Controlled By Arduino)

FT-SCServo is meaning that Smart Control Servo was R&D and manufactured by FEETECH.

SCServo can work at servo mode and wheel mode.








The servo mode can be used to multi-joints robot since the robots can be controlled with specific angles. (The factory default setting is servo mode)
The wheel mode can be used to wheel-type operation robots since motors of the robots spin infinitely. (If wheel mode is available you need to program the value of position limitation the both are 0.)

If you want to reprogram servo, you need to download the PC software (SCServo_Debug), and to connect SCPC-2(Serial Control Programming Card) between servo and PC.

More about SCServo_Debug and SCPC-2 introduce please reference its instructions.

SCServo has a unique ID number to identify on BUS network.

The range from 0 to 253 (0xFD) can be used (The factory default setting is ID 1), and, especially, 254(0xFE) is used as the Broadcast ID. If the Broadcast ID is used to transmit Instruction Packet, we can command to all SCServo.

After programmed servo ID, to be best way is written it on the sticker of servo. If not, maybe you will forget the ID when you programmed many servos.
SCServo have kinds of baud rate available.

The baud rate from 38400 bps to 1M bps can be used.
They are 38400, 57600,76800,115200,128000,250000,500000,1000000. (The factory default setting is 1000000 bps)

SCServo can feedback the value of Position, Temperature, Load, Speed and Input Voltage.

Also we can reprogram the speed of rotation, the max output torque, operating voltage limit, and operating temperature limit etc.

SCServo is easy to be controlled by Arduino.

SCServo needs to have a TTLinker connect to between Arduino and SCServo.
If not please reference Connection to UART.

TTLinker is a signal conversion board. Arduino needs to convert its UART signals to the half duplex type and through TTLinker connect to SCServo. Also TTLinker have more interface used to kinds of sensor and compatible with Arduino.

Arduino library SCServo

We have SCServo library to be used when you are using Arduino to control SCServo. You can download it from website of feetechrc.com.

For example Arduino code as shown below.
#include <SCServo.h>
SCServo SERVO;
void setup()
{
Serial.begin(1000000);//init Serial baudrate
delay(500);
SERVO.EnableTorque(0xfe,1);
}
void loop()
{
u16 i;
for(i = 0;i < 1024; i++)
{
SERVO.WritePos(0xfe,i,100);//All Servo(broadcast) rotate to the position:i
delay(10);
}
for(i = 1024; i > 0; i)
{
SERVO.WritePos(0xfe,i,100);//All Servo(broadcast) rotate to the position:i
delay(10);
}
}
This is show that using broadcast instruction to control all of SCServo on the BUS.
About instruction of WritePos, RegWritePos, ReadPos, RegWrite, Action, SyncWritePos and more introduce instruction please reference its instructions on website of feetechrc.com.

Half Duplex Asynchronous Communication

Half duplex UART is a serial communication protocol where both TxD and RxD cant be used at the same time. This method is generally used when many devices need to be connected to a single bus. Since more than one device is connected to the same bus, all the other devices need to be in input mode while one device is transmitting.

The Main Controller that controllers of the SCServo actuators sets the communication direction to input mode, and only when it is transmitting an Instruction Packet, it changes the direction to output mode.

Connection to UART
To control the SCServo actuators, the main controller needs to convert its UART signals to the half duplex type. The recommended circuit diagram for this is shown below.
Hardware Specifications
SKU:   FT-SCS15
Dimensions:   40.0X20.0X40.5mm
Weight:   56g(1.98oz)
Gear Type(Ratio):   Metal(275:1)
Bus Interface:   TTL Level Multi Drop
Position Sensor(Resolution):   Potentiometer (215/1024)
Operating Angle:   200(Servo Mode)
Control System:   Bus Packet Communication
Protocol Type   Half duplex Asynchronous Serial Communication
ID:   254 ID (0~253)
Communication Speed:    38400bps ~ 1 Mbps
Feedback   Position, Temperature, Load, Speed, Input Voltage
Motor Type:   Carbon
Bearing Type:   2BB
Operating Voltage:   6V~8.4V
Stall Torque(Kg.cm):   15(6V)
16.5(7.4V)
17(8.4V)
Stall Current(A) :   1.5A(7.4)
Operating Speed(RPM):   55(6V) 65(7.4V) 73(8.4V)
Connector(Wire Length):   3P&5264 (15cm)
Stall torque is the maximum instantaneous and static torque
Stable motions are possible with robots designed for loads with 1/5 or less of the stall torque
« Last Edit: July 08, 2014, 08:12:39 PM by robotfans »

Offline jwatte

  • Supreme Robot
  • *****
  • Posts: 1,343
  • Helpful? 81
Re: T-SCServo 15kg Smart Control Servo Controlled By Arduino
« Reply #1 on: May 22, 2014, 09:34:44 AM »
This looks very similar in specification to the Robotis Dynamixel AX-12A (and perhaps the XL-320.)
Where is it sold and how much does it cost?

Offline robotfansTopic starter

  • Jr. Member
  • **
  • Posts: 8
  • Helpful? 0

Offline robotfansTopic starter

  • Jr. Member
  • **
  • Posts: 8
  • Helpful? 0
Re: FEETECH FT-SCServo 15kg Smart Control Servo Controlled By Arduino
« Reply #3 on: July 29, 2014, 08:17:53 PM »
Feetech 6 Degree Of Freedom NanoBiped Robot Combo
Please see the following video to learn more about our new smart control servo
FEETECH SCServo SCS15 Biped 6 Control by TTLinker mini Arduino part3
https://www.youtube.com/watch?v=-Pb8dm5RLU0

https://www.youtube.com/watch?v=Q7S8Mj9NgXc

https://www.youtube.com/watch?v=9CJTqoK9Kd
